Exclusive SUV with V8 biturbo engine
The new Mercedes-Benz ML 63 AMG stands for efficiency and performance, exclusivity and a superlative driving experience. Running on 11.8 litres of fuel per 100 kilometres (NEDC combined, 276 g CO2/km), the high-performance SUV undercuts its predecessor by 28 percent.
The basis for low fuel consumption and top-class performance is provided by the AMG 5.5-litre V8 biturbo engine with a maximum power output of 386 kW and a peak torque of 700 newton metres, representing an increase of 11 kW and 70 newton metres. The optionally available AMG Performance package boosts the V8 engine’s power output to 410 kW and its maximum torque to 760 newton metres. The AMG RIDE CONTROL sports suspension with newly developed ACTIVE CURVE SYSTEM for active roll stabilisation, the AMG-specific design and the broad scope of standard equipment and appointments make for a highly attractive overall package.
The new ML 63 AMG comes with an exciting technology package: the AMG 5.5-litre V8 biturbo engine features spray-guided direct petrol injection with piezo injectors, ECO start/stop system, an all-aluminium crankcase, four valves per cylinder with camshaft adjustment, air-water intercooling and alternator management. With a displacement of 5461 cc, the eight-cylinder engine generates a maximum power output of 386 kW and 700 Nm of torque. In conjunction with the AMG Performance package these values rise to 410 kW and 760 Nm. This difference in power and torque results from an increase in the maximum charge pressure from 1.0 to 1.3 bar.
Both variants of the ML 63 AMG enable sports-car performance: acceleration from zero to 100 km/h takes 4.8 seconds and 4.7 seconds respectively, while the top speed stands at 250 km/h (electronically limited). With or without AMG Performance package, the NEDC fuel consumption figure of 11.8 litres per 100 kilometres (276 g CO2/km) remains the same.
Mercedes-Benz ML 63 AMG: Key data at a glance:
| ML 63 AMG | |
| Displacement | 5461 cc |
| Bore x stroke | 98.0 x 90.5 mm |
| Compression ratio | 10.0 : 1 |
| Output | 386 kW at 5250 r/min 410 kW at 5750 r/min* |
| Max. torque | 700 Nm at 1750-5000 r/min 760 Nm at 2000-5000 r/min* |
| Engine weight (dry) | 204 kg |
| Fuel consumption, NEDC combined | 11.8 l/100 km |
| CO2 emissions | 276 g/km |
| Acceleration 0-100 km/h | 4.8 sec 4.7 sec* |
| Top speed | 250 km/h** |
*With AMG Performance package **Electronically limited
Efficient and variable: AMG SPEEDSHIFT PLUS 7G-TRONIC
Power is transmitted to all four permanently driven wheels by the AMG SPEEDSHIFT PLUS 7G-TRONIC. Featuring three modes and an automatic double-declutching function for downshifting, this seven-speed automatic transmission offers a fascinatingly broad scope of variability. In “Controlled Efficiency” (C) mode the ECO start/stop function is active, shutting down the eight-cylinder engine when the vehicle is stationary. “C” also stands for a gentle accelerator and transmission characteristic with early gear changes; start-up generally takes place in second gear here. A green “ECO” symbol in the AMG instrument cluster indicates to the driver that the ECO start/stop function is active.
In the Sport (S) and Manual (M) modes the ECO start/stop function is inactive and the engine-transmission combination displays far greater agility. A brief and exactly defined retardationof ignition and injection during upshifting at full load additionally provides for shorter shift times here.
Mercedes-Benz ML 63 AMG: Enhanced efficiency and driving dynamics
As efficiency-enhancing measures, the AMG SPEEDSHIFT PLUS 7G-TRONIC automatic transmission incorporates a new fuel-economy converter with centrifugal pendulum, bearings designed for reduced friction loss and a transmission-oil thermal management system. Friction loss-minimised axle gears, electric steering, an optimised belt drive, and demand-responsive control of all ancillary units and pumps all help to further reduce fuel consumption.
As previously, Mercedes-AMG deploys a specially designed transfer case for the 4MATIC permanent all-wheel drive which distributes the engine power at a ratio of 40 : 60 to the front and rear axle in the interests of high driving dynamics. Furthermore, the AMG RIDE CONTROL sports suspension with AIRMATIC package – consisting of air suspension, independent damper struts, automatic level control and Adaptive Damping System (ADS) – features for the first time in combination with the ACTIVE CURVE SYSTEM for active roll stabilisation. This system, which comes as standard, employs active anti-roll bars on the front and rear axles to compensate the body’s roll angles during cornering. In addition to enhanced agility and driving enjoyment, the system also improves driving stability for added safety at higher speeds in particular.
Roll stabilisation, damping and suspension adapt automatically to the prevailing driving situation, offering both optimum ride comfort and maximum stability. The driver is able to choose at the push of a button between the three suspension modes “Comfort”, “Sport” and “Sport plus”. The fully load-bearing air suspension system is speed-sensitive, lowering the body at higher speeds in order to minimise drag while increasing driving stability.
The AMG-specific elastokinematics at the front axle and the more robustly designed rear axle stabiliser bar are responsible for improved steering precision. The enhanced drive train stands for optimum power transmission and hallmark Mercedes reliability. The 4ETS electronic traction control system which features as standard provides for optimised grip when low friction coefficients apply.
AMG speed-sensitive sports steering, AMG high-performance braking system
Electromechanical AMG speed-sensitive sports steering features variable vehicle speed-dependent power assistance, and helps to save fuel, as the steering assist function only requires energy when the driver actually moves the steering wheel. The ML 63 AMG comes as standard with 5-spoke AMG light-alloy wheels in 9 x 20 format, painted titanium grey with a high-sheen finish and fitted with tyres in size 265/45 R 20. Tyres in size 295/35 R 21 on AMG light- high-performance braking system provides for the shortest possible braking distances and high fade resistance, featuring ventilated and perforated brake discs all-round in size 390 x 36 (front) and 345 x 26 millimetres (rear).
Specific AMG styling with trim in matt silver chrome

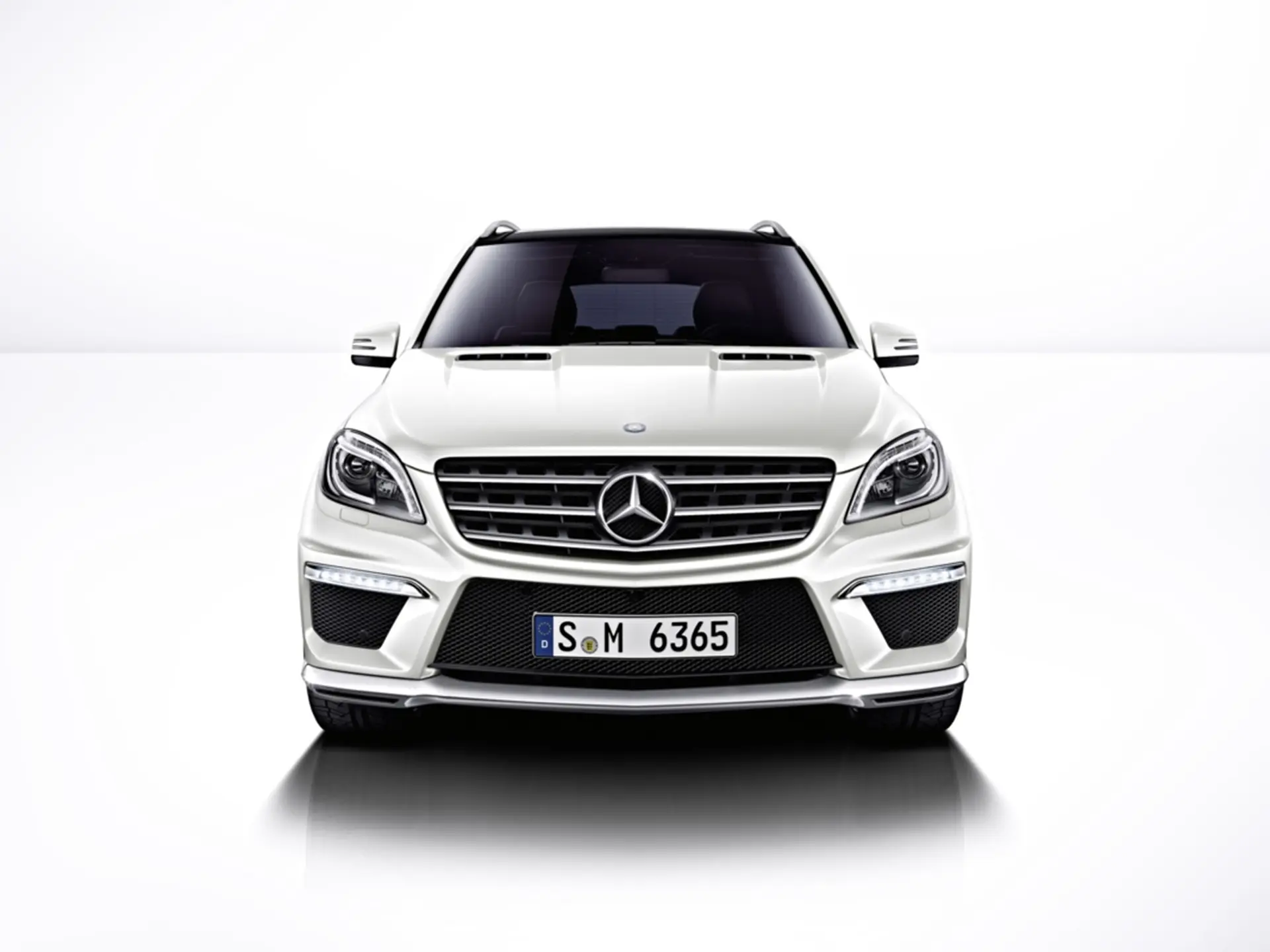

The design of the new ML 63 AMG exudes self-confidence, athleticism and power. The AMG bodystyling dominates the front view: under the radiator grille with louvres painted in high-gloss black and the large Mercedes star is a large cooling air intake. Together with the two outer air intakes, the central radiator grille provides for an effective flow of air to the water, engine oil, charge-air and transmission oil coolers. Fitted at the bottom of the AMG front apron is a trim strip in matt silver chrome, which lends the front a wider appearance while harmonising with the surrounds of the daytime running lamps in the side cooling air intakes. The headlamps cut a particularly high-quality and exclusive figure in combination with the optional Intelligent Light System (ILS). The AMG front apron is integrated with the distinctive front wings, which are 10 millimetres wider on either side in order to accommodate the large AMG light-alloy wheels in elegant fashion. “V8 BITURBO” logos identify the vehicle as the flagship AMG model in the M-Class. Dynamically profiled AMG side sill panels establish a visual link between the front and rear of the vehicle.

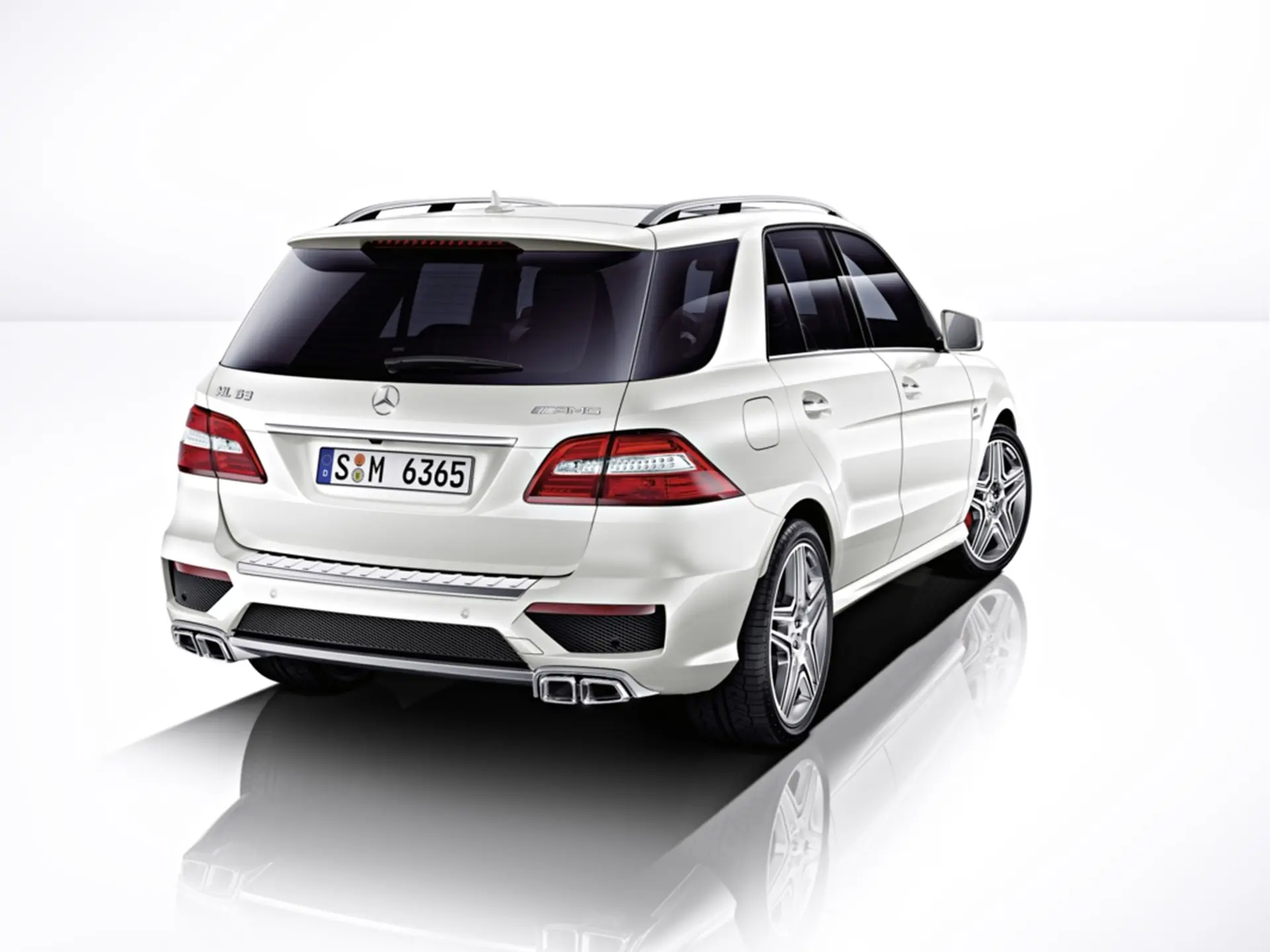

Another eye-catching feature is the AMG rear apron with its simulated
black air outlet openings. They emphasise the vehicle’s width similarly to the trim strips in matt silver chrome, which cite the design of the front apron and frame the AMG sports exhaust system. In contrast to the other M-Class variants, the ML 63 AMG features two sets of chrome twin tailpipes. The full and distinctive eight-cylinder sound is an AMG hallmark.
High-quality, sporty interior
A sporty character and premium quality define the interior of the high-performance SUV from AMG. This is embodied in the electrically adjustable AMG sports seats offering pronounced lateral support as well as the four-spoke AMG performance steering wheel, which ensures optimum control of the vehicle with perforated leather in the grip area, aluminium shift paddles and a rim with a flattened bottom section. Aluminium trim and the piano-lacquer retractable cover in the centre console highlight the interior’s dynamic and exclusive flair. The standard leather upholstery includes contrasting double topstitching and AMG badges in the backrests of the front seats and the outer rear seats. Dashboard, armrests and door panelling in AMG-specific design are finished in ARTICO man-made leather with double topstitching.
The distinctively designed instrument cluster with colour TFT monitor, AMG welcome logo and AMG main menu is exclusive to the ML 63 AMG.
Other standard equipment on the Mercedes-Benz ML 63 AMG includes:
- ACTIVE CURVE SYSTEM
- AIRMATIC air suspension
- Aluminium-look running boards with rubber studs
- AMG door sills in stainless steel
- AMG floor mats
- AMG sports pedals in brushed stainless steel with rubber studs
- COMAND Online multi-media system with 6-disc DVD changer
- Electrically operated EASY PACK tailgate
- EASY-PACK load compartment cover
- Electric trailer coupling
- Electric sliding glass roof
- Harman Kardon® Logic 7® surround sound system
- Headlamp cleaning system included in Light package
- Heated seats for driver and front passenger
- Light package including Intelligent Light System
- Media Interface
- Memory package
- Reversing camera
- THERMOTRONIC luxury automatic climate control
- Tyre pressure monitoring system
Exclusive optional extras are available from the Mercedes-Benz ML 63 AMG Performance Studio:
- AMG Performance package with increase in power of 24 kW and 60 Nm more torque, AMG engine cover in high-quality genuine carbon fibre, AMG performance steering wheel with DINAMICA microfibre in the grip area, red-painted brake callipers
- 5-twin-spoke AMG light-alloy wheels (10 x 21) painted in titanium grey with a high-sheen finish, fitted with tyres in size 295/35 R 21
Mercedes-Benz ML 63 AMG Additional optional extras:
- EASY-PACK FIXKIT load compartment management system
- Electric panoramic sliding glass sunroof
- Rear Seat Entertainment System
- TV tuner
- Wood/leather steering wheel in nappa leather
Mercedes-Benz ML 63 AMG: Safety of the very highest calibre
In line with the Mercedes-Benz brand philosophy, the new ML 63 AMG is the embodiment of the Mercedes-Benz holistic safety concept of Real Life Safety, which is derived primarily from what happens in a real accident situation. The extremely robust passenger compartment, together with the front and rear deformation zones, forms an effective basis for the occupant protection systems. Up to nine airbags, activated on demand in accordance with the accident type and accident severity, can reduce the loads exerted on the occupants. In addition to active safety systems such as the standard-fit Brake Assist (BAS) or the optional BAS PLUS, which can help to prevent an accident or reduce the severity of an accident, the new M-Class features further enhanced passive-safety measures to help protect pedestrians.
Both active safety and driver-fitness safety are improved by assistance systems that will already be familiar, primarily from the S-Class and E-Class. The standard equipment package includes the drowsiness detection system ATTENTION ASSIST, the anticipatory safety system PRE-SAFE® and a tyre pressure monitoring system, as well as adaptive brake lights and the ESP® Electronic Stability Program.
Active assistance systems such as Active Lane Keeping Assist and Active Blind Spot Assist are available as additional equipment options in the Driving Assistance package.
The new Mercedes-Benz ML 63 AMG is launched at:
- ML 63 AMG:R1 380 000
- AMG Performance package: R70 000
- AMG Driver’s package (increases top speed to 280 km/h) R30 000
