Super ACE
Super ACE is the latest 1 ton mini-truck from Tata Motors and supplements its existing bakkie range in South Africa offering “more value for money” to its customers.
Strong, Spacious and Superb – the Tata Super ACE is a combination of new age design and cutting edge technology. In a world obsessed with frivolous excesses, Super Ace comes with a promise – a promise to deliver exactly what your business needs.
A TATA 4 cylinder, turbocharged & intercooled (475 IDI) engine that is coupled to a 5-speed fully synchromesh gearbox is used to power & propel the Super Ace. It delivers a peak power of 52 kW (70 HP) and a peak torque of 135 NM. Its performance is accentuated by the best in class fuel consumption.
Maximum gradeability of 39% allows the Super Ace to climb steep slopes & negotiate difficult terrains. Super Ace has been designed to navigate narrow & busy roads too with ease. The 4.34 m length & 1.56 m width coupled with a turning radius of 5.1 m allows a higher degree of maneuverability.
With a full 1 ton loading capacity and the longest loading deck in its class, it gives you the required tool to keep pace with your growing business & delivery needs. Its strong & sturdy chassis is made from high quality steel for maximum durability.
The cargo body area (2630×1460 mm) of Super Ace is amongst the largest in the 1 T payload category enabling it to carry voluminous cargo with ease. The three side drop-side load body and optimum loading height ensures ease of loading & unloading. Super Ace offers maximum flexibility making it a perfect option for various usages & applications.
The contemporary & distinctive exterior styling and the all steel shell makes an artful combination of style & strength. Front independent suspension ensures a very comfortable ride for the driver and the passenger. The signature Tata grill & the elegant composite head lamps increase the aesthetics of the vehicle.

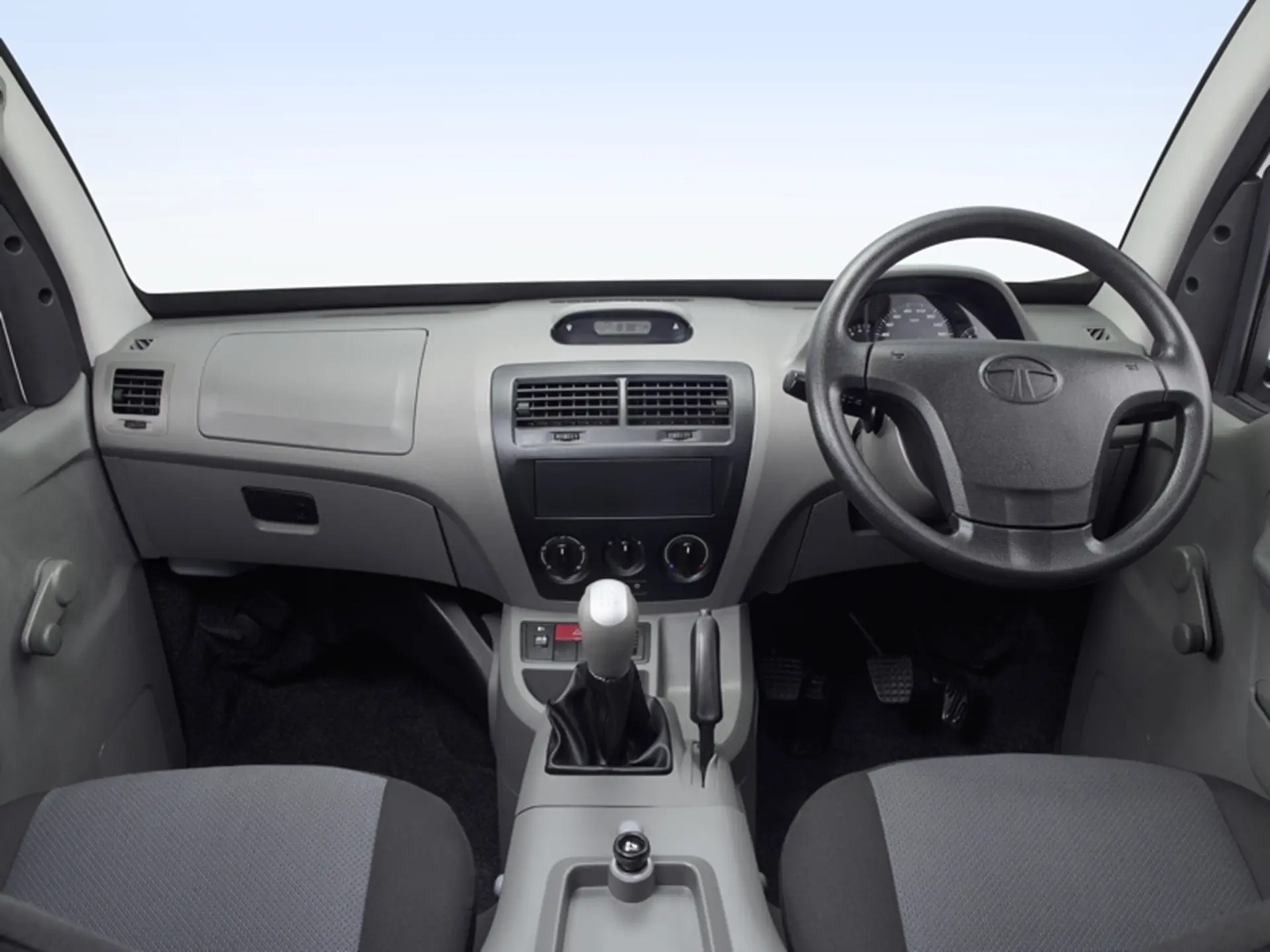

The interiors have been designed keeping passengers’ comfort and convenience in mind. It is designed in such a way as to offer better driving comfort, convenience and visibility. Taking the “User Friendly” theme into Super Ace’s cabin, you will find features like laminated windscreen, tinted glasses, power windows, power steering, external power socket & interior trims with two tone fabric.
The newly designed “soft touch” dashboard in addition to housing the instrument cluster also has a lockable glove box & a sophisticated Heating, Ventilation & Air conditioning (HVAC)* system to further enhance the levels of comfort.
With its superior exterior styling, versatility, large loading area, comfortable ride and handling, best in class fuel efficiency, Super Ace is the vehicle that that is powered to take your business to the next level.
| Model | Super Ace |
| Engine | |
| Model | TATA 475 IDI TCIC EURO II 4 Stroke, Water cooled, Indirect |
| Type | Injection, Turbo charged intercooled Diesel engine |
| Displacement | 1405 cc |
| Maximum Power | 52 kW (70 hp) @ 4500 rpm |
| Maximum Torque | 135 Nm @ 2500 rpm |
| Clutch | Single Plate dry friction diaphragm type |
| Gearbox | GBS 65-5/5.07 |
| Type | Synchromesh on all 5 forward gears; Sliding mesh for reverse gear |
| Brakes | |
| Type | Dual circuit vacuum assisted hydraulically actuated |
| Front | Disc Brake |
| Rear | Drum Brake |
| Parking Brake | Cable operated mechanical linkages acting on rear brakes |
| Suspension | Front : Independent, strut type |
| Type | Rear : Semi Elliptic leaf spring |
| Shock Absorber | Hydraulic double-acting telescopic type |
| Wheels & Tyres | |
| Tyres | 175 R14 LT 8PR Radial |
| Dimensions | (in mm) |
| Overall Length | 4340 |
| Overall Width | 1565 |
| Overall Height | 1864 |
| Ground Clearance | 160 |
| Wheel Base | 2380 |
| Track Front | 1340 |
| Track Rear | 1320 |
| Load deck Length | 2630 |
| Load deck Width | 1460 |
| Height of side panels | 300 |
| Loading Height from ground | 597 |
| Minimum turning Circle Diameter | 10.2 m |
| Fuel Tank (l) | 38 |
| PERFORMANCE | 125 kmph |
| Gradability | 39% |
| Weight | |
| Max GVW (kg) | 2240 |
| Kerb Weight (kg) | 1240 |
| Payload | 1000 |
| Seating Capacity | Driver + 1 |
| Features | DLS | DLE |
| Load Guard | Yes | Yes |
| Rear Tow bar provision | Yes | Yes |
| Ventilation system | Heater Demister | HVAC |
| Body colored bumper & ORVM | No | Yes |
| Power Windows | No | Yes |
| Central Locking & Immobilizer | Yes | Yes |
Salient features:
-
Genuine 1T bakkie with a Turbocharged Diesel engine
-
Best in class fuel efficiency
-
Longest loading deck in its class – 2.63 m
-
Stylish yet practical
