CADILLAC PROVOQ FUEL CELL CONCEPT DELIVERS CLEAN, PETROLEUM-REE PERFORMANCE AND SIGNATURE DESIGN
Cadillac’s vision for the future of luxury transportation is the innovative Provoq fuel cell concept – a hydrogen fuel cell crossover vehicle that continues GM’s commitment to displace petroleum through advanced technology.
The Cadillac Provoq fuel cell concept is the latest example of GM’s groundbreaking E-Flex propulsion system, combining a fifth-generation fuel cell system and a lithium-ion battery to produce an electrically driven vehicle that uses no petroleum and produces no emissions other than water. The concept’s fifth-generation fuel cell technology is half the size of its predecessor, yet it has been developed to produce more power and performance.
“Cadillac is a natural fit for GM’s next step in developing the E-Flex platform,” says Jim Taylor, Cadillac general manager. “Cadillac, at its very essence, is about premium luxury, design and technology, so it’s fitting that Cadillac would be propelled by the most elegant solution. This signals Cadillac’s intent to lead the industry with alternative-fuel technology.”
Fuel-cell variant of the E-Flex system
The concept can drive 483 km on a single fill of hydrogen – with 450 km from hydrogen and 33 km on electric energy accumulated in a battery pack.
A pair of 700 bar composite storage tanks located beneath the rear cargo floor hold 6 kg of hydrogen to feed the fuel cell stack, located under the bonnet. There, hydrogen mixes with oxygen to generate electricity – up to 88 kW of continuous power. A lithium-ion battery pack can store up to a total of 9kWh of electrical energy and also provides a peak of 60 kW of power for additional performance.
The electricity generated by the fuel cell is distributed to a 70 kW co-axial drive system for the front wheels and individual, 40 kW wheel hub motors on the rear wheels, giving the Cadillac Provoq its all-wheel-drive traction and great driving dynamics. Its 0-100 km/h speed of 8.5 seconds is a more than 30-percent improvement over the previous-generation fuel cell system and with instantaneous torque delivered to the wheels, it feels even faster. Provoq has a top speed of 160 km/h.
Key features
With sleek, signature Cadillac bodywork, the Provoq concept redefines luxury crossovers, offering uncompromising passenger and cargo space to match its performance and cruising range. Additional vehicle features include:
-
A solar panel integrated in the roof to help power onboard accessories, such as the interior lights, audio system and more
-
Brake-by-wire technology
-
Front grille louvers that close at highway speed to enhance aerodynamics, and open at low speed to provide maximum cooling to the fuel cell stack
Purposefully dynamic design
The Provoq has a sleek, athletic shape that builds on the second generation of Cadillac’s design renaissance, led by the new CTS, with dynamic and purposeful features that support the hydrogen fuel cell powertrain and contribute to the vehicle’s overall efficiency.
All the people- and cargo-carrying capability customers expect in crossovers and SUVs is available in the Provoq, along with the premium attributes expected in a Cadillac.
Highlights include:
-
Active front grille, with grille louvers that open when the fuel cell stack requires cooling
-
Full underbody aerodynamic cover
-
Left- and right-hand charging ports incorporated in stylish front fender vents
-
Flush door handles that feature push-to-release operation
-
Wind tunnel-shaped outside mirrors with integral turn signals
-
Center high-mounted rear stop lamp incorporated into full-width, wraparound spoiler
-
Signature vertical taillamps with subtle fin design
-
Side glass mounted flush with pillars
-
Wheels with clear-covered space between the spokes, creating a sleeker profile while maintaining Cadillac’s signature bold wheel design
-
Low-drag roof rack
“From the strong, shield grille and vertical headlamps to the crisp body lines, the Provoq is instantly recognizable as a contemporary Cadillac,” says Hoon Kim, exterior lead designer. “Like the new CTS, it is bold and expressive, but there is enhanced shape between the edges – it’s a new proportion for crossovers, with a fast, almost coupe-like rear.
“Everything about the vehicle reinforces the notion that great style and environmentally conscious transportation can go hand in hand,” says Kim. “We didn’t sacrifice proportion, stance or Cadillac’s iconic design cues; we used them to support the efficiency of the vehicle.”
The fender-mounted charge ports are a prime example of this. They allow overnight, plug-in charging that extends the driving range of the Provoq. The ports have a satin-chrome appearance that incorporates an amber light to indicate the system is charging and a green light to indicate when charging is completed.
The vertical, neon-lit taillamps blend style with functionality, too, as their finned shape was designed to make the Provoq as aerodynamically efficient as possible.
The Provoq has short overhangs and a sporty ride height that is complemented by large, 21-inch wheels. The wheels are wrapped in custom Michelin tyres incorporating Green-X technology. These low-rolling resistance tyres feature a tread pattern that mimics the “H20” notation for water.
The tyre designers and engineers at Michelin North America enthusiastically accepted GM’s challenge to create a custom low-rolling resistance tyre to complement the energy efficiency and reduced environmental footprint of the Cadillac Provoq. During the past 15 years, the tyre maker has developed four generations of Michelin green energy-saving tyres, and the team’s no-compromise approach to the project helped reduce the Provoq’s overall fuel consumption without sacrificing road performance, grip and safety.
When used in conjunction with the other energy-efficient solutions featured on the Cadillac Provoq, the benefits of Michelin green energy-saving tyres include:
-
A reduction in the consumer’s overall cost of ownership
-
An extended vehicle range through a more efficient use of on-board energy and its storage capacity
-
A reduction of vehicle impact on the environment through lower CO2 and particulate emissions.
Uncompromising interior
Like the exterior, the Provoq’s interior blends style with function. It seats five and incorporates the comfort, convenience and infotainment features Cadillac customers seek. Most importantly, the fuel cell powertrain does not intrude on passenger or cargo space.

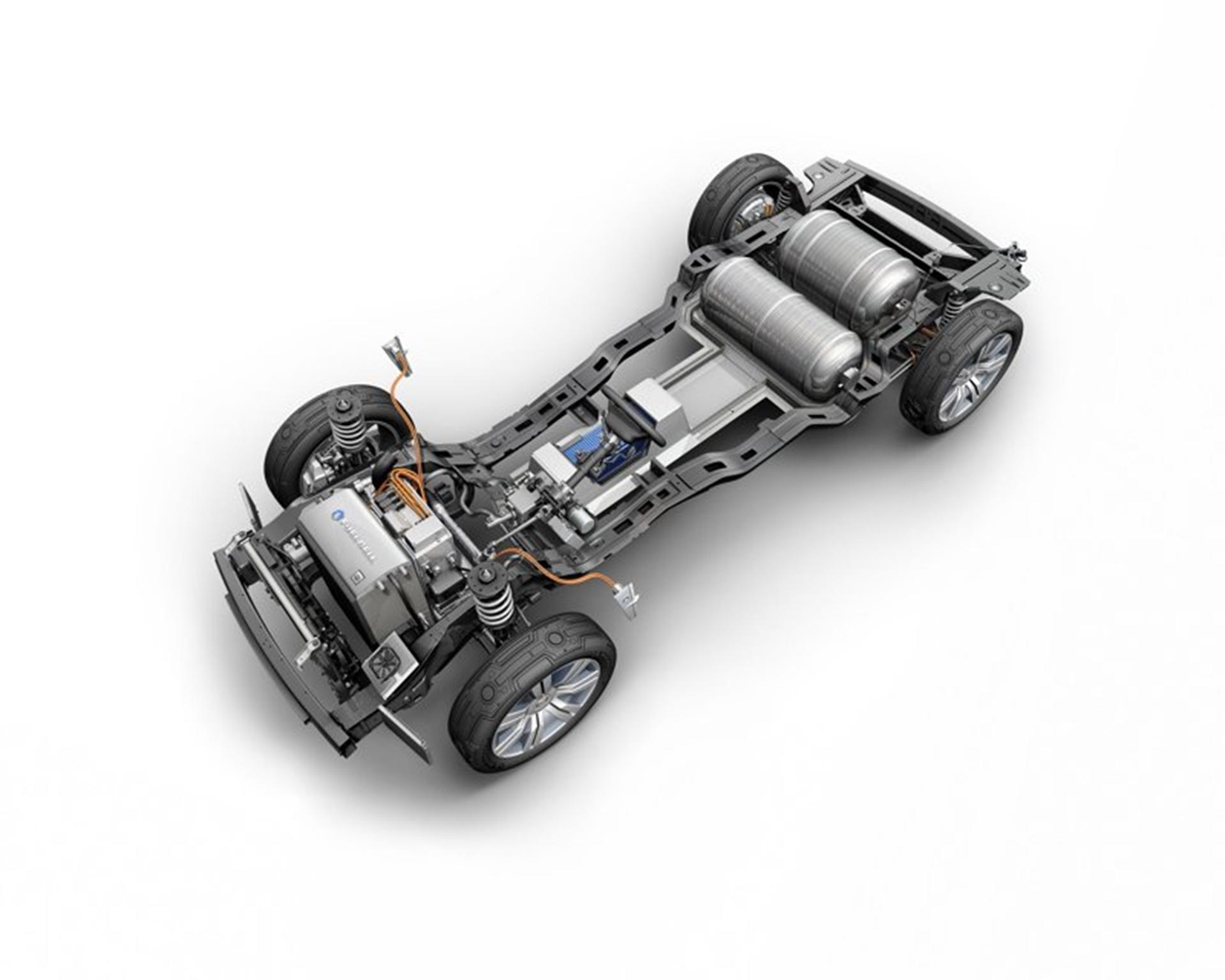

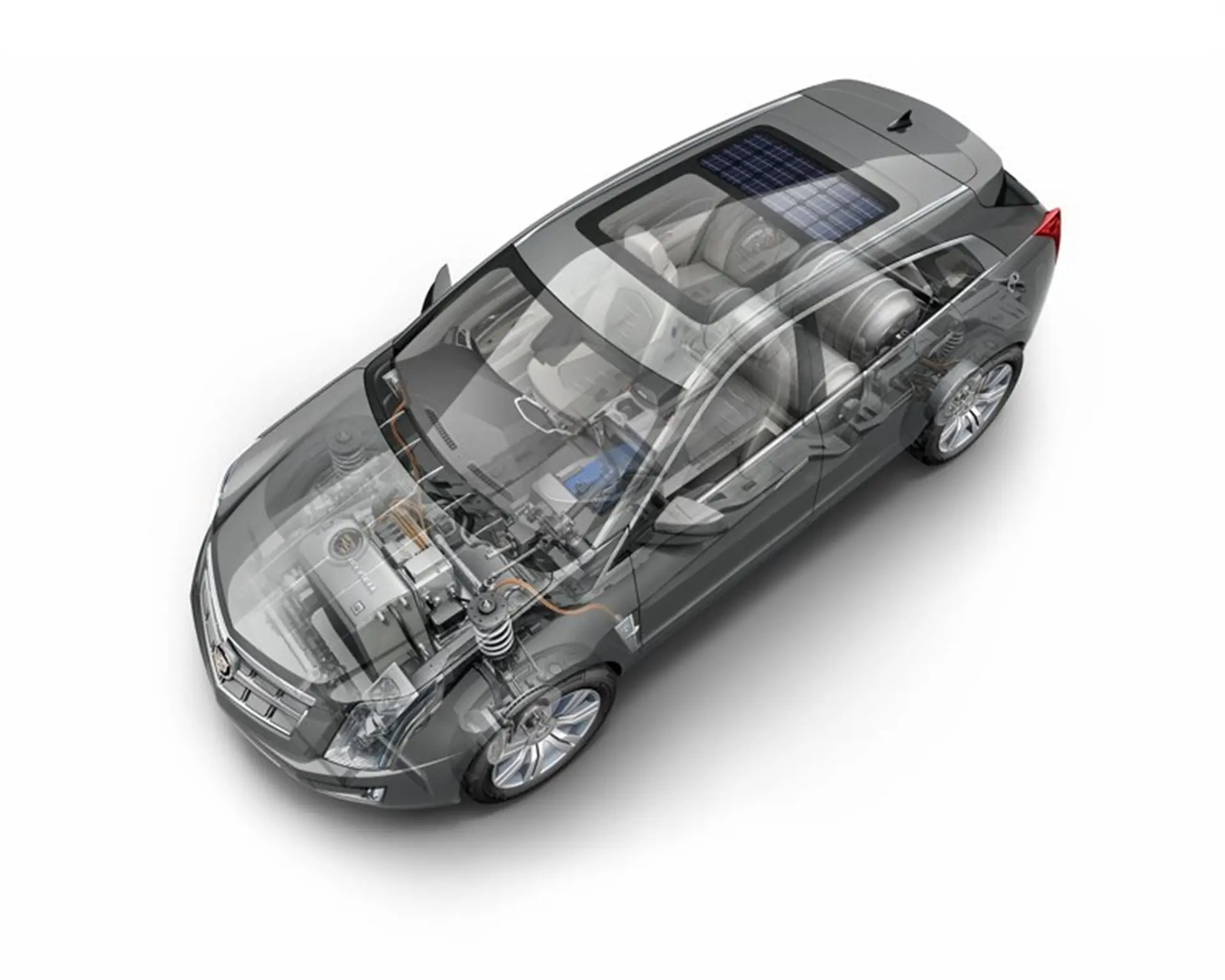

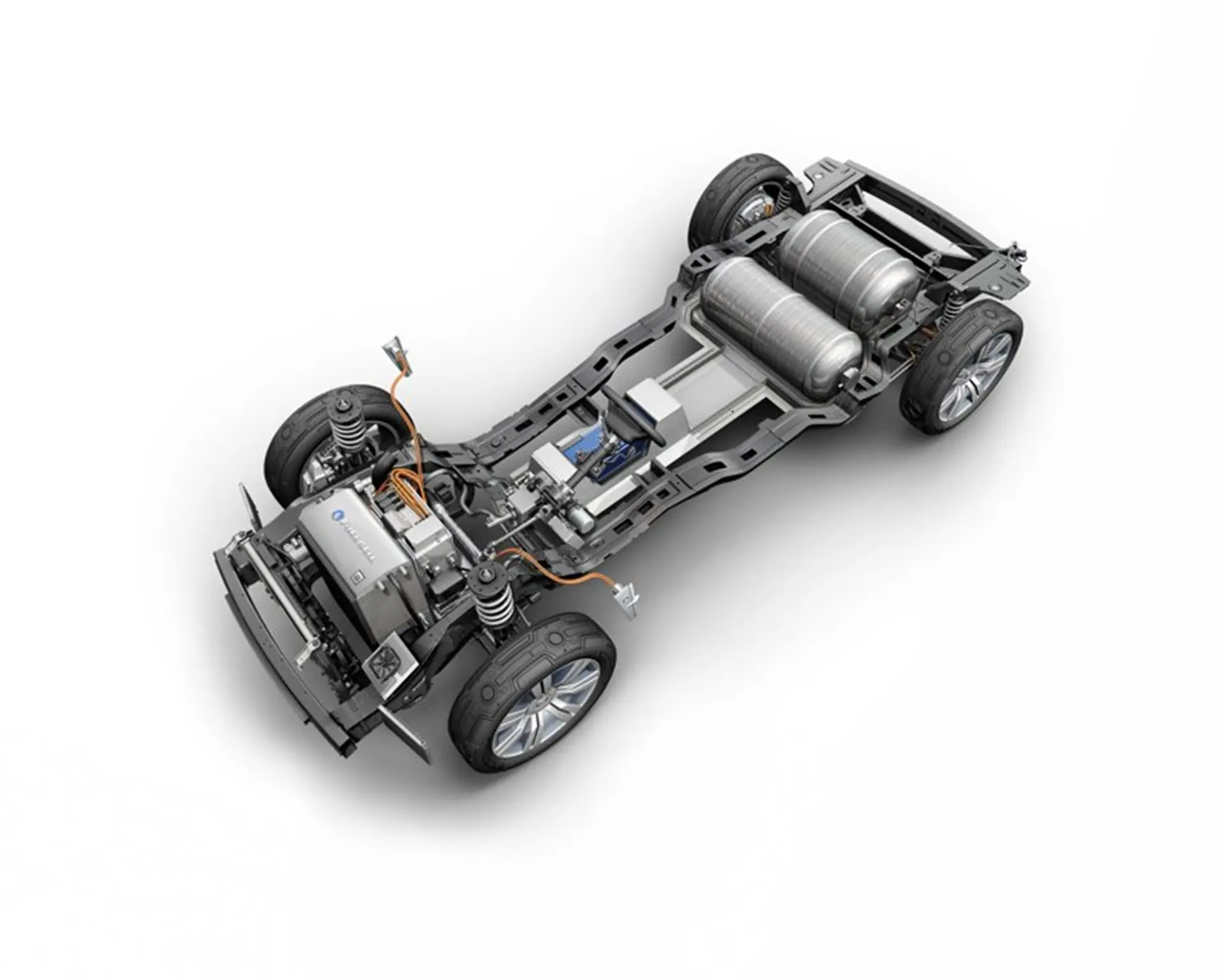

The hydrogen fuel tanks are mounted beneath the cargo floor, with the storage batteries located at the center of the chassis. The fuel cell stack is located under the bonnet, giving the Provoq the interior layout of a conventional crossover – including a full cargo area and a 60/40-split folding rear seat.
There are no compromising reminders of the fuel-cell powertrain in the interior and the Provoq carries the instantly identifiable hallmarks of a contemporary Cadillac interior, with an expressive, well-crafted design.
It picks up the cues, refinement and attention to detail of the new CTS and takes them to the next level. A contrasting colour scheme, extensive use of ambient lighting technology and elements such as cut-and-sewn, hand-wrapped leather with French seams, elements seen in current Cadillac models, are amplified in the Provoq.
The interior has a contrasting, dark grey and light grey colour scheme, with chrome and satin-chrome accents throughout. Ambient lighting extends across the instrument panel and into the door panels, as well as the foot wells, sills and under the seats.
A unique instrument cluster with large, reconfigurable LCD displays offers a multitude of vehicle information readouts, including fuel cell information and vehicle performance. Like the CTS, the Provoq has a prominent centre console that houses the audio and climate control systems, as well as a navigation system that rises out of the top of the instrument panel. Also like the CTS, there is an integrated hard drive that stores navigation maps, thousands of songs and more.
Between the front bucket seats is a large centre console with a fully enclosed storage compartment that is home to ports for USB-connected devices and other electronics. The console also has a cell phone holder with built-in Bluetooth and inductive charging. The compact shifting mechanism on the console uses shift-by-wire technology to engage the gears, resulting in more storage space within the console.
A variety of recycled and recyclable materials were used, as well. Highlights include:
-
The headliner is wrapped in a fully recyclable soy-based material
-
The carpet is made of recycled polyester and jute
-
Leather used to cover the seats and instrumental panel is free of harmful chemicals
-
Xorel material used on the door panels and instrument panel; treated to perform as a carbon-fibre-type material
-
Chrome trim made with less-harmful materials
The earth-friendly interior components blend seamlessly with the more conventional materials inside the Provoq, enhancing the vehicle’s integrated, customer-focused environment. The same goes for the cargo area, which features an auxiliary power outlet and a load floor that is level with the hatch opening.
SPECIFICATIONS
-
Vehicle type: four-door crossover
-
Wheelbase (mm): 2906
-
Length (mm): 4580
-
Width (mm): 1850
-
Height (mm): 1703
-
Track (mm): 1639 (front and rear)
-
Powertrain 88 kW fuel cell w/ co-axial electric front drive; independent rear wheel motors
-
Suspension: four-wheel independent; MacPherson-strut (front), multi-link (rear)
-
Brakes: four-wheel disc; brake-by-wire; regenerative electric
-
Wheels: 21-inch x 6.5-inch aluminium
-
Tyres: 205/60R21 Michelin Green X energy-saving
