BMW R 1200 GS Technical specifications
The “BMW GS” concept has embodied riding pleasure and the desire for adventure for over 30 years. This applies especially to the GS motorcycles with the opposed-twin “boxer” engine. The “big GS” allows motorcyclists to explore the most remote corners of the world – an idea that has already inspired numerous globetrotters to set off on their travels.
|
|
|
BMW R 1200 GS | |
| Engine |
|
|
|
| Capacity |
cc |
|
1,170 |
| Bore/stroke |
mm |
|
101/73 |

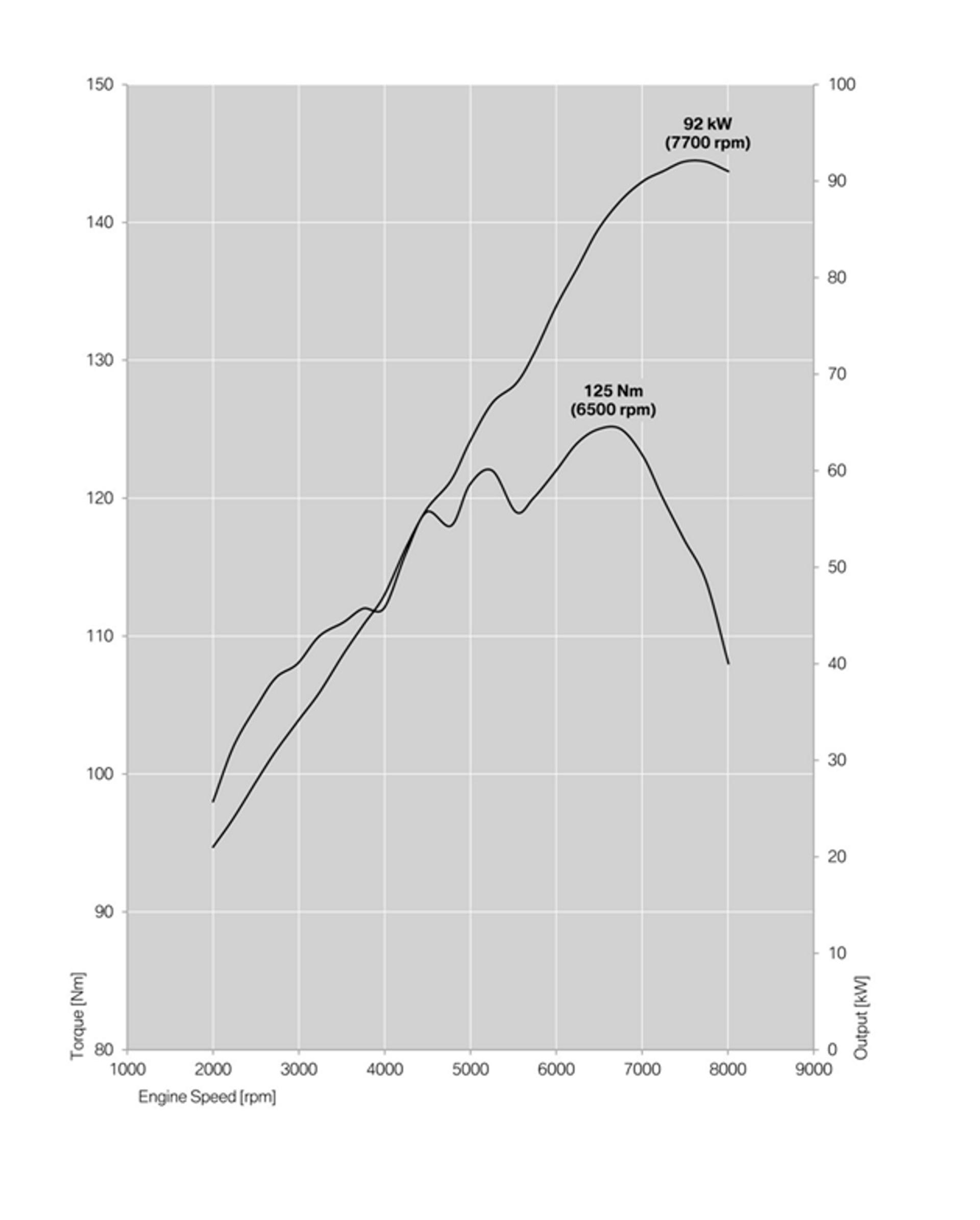

| Output |
kW/bhp |
|
92/125 |
| at engine speed |
rpm |
|
7700 |
| Torque |
Nm |
|
125 |
| at engine speed |
rpm |
|
6500 |
| Type |
|
|
air/water-cooled 2-cylinderboxer engine |
| No. of cylinders |
|
|
2 |
| Compression/fuel |
|
|
12.5:1 / Premium unleaded (95 RON) |
| Valve actuation |
|
|
DOHC |
| Valves per cylinder |
|
|
4 |
| Ø Intake/outlet |
mm |
|
40/34 |
| Ø Throttle valve |
mm |
|
52 |
| Carburetion |
|
|
BMS-X |
| Emission control |
|
|
Closed-loop 3-way catalytic converter |
|
|
|
|
|
| Electrical system |
|
|
|
| Alternator |
W |
|
620 |
| Battery |
V/Ah |
|
12/12 maintenance-free |
| Headlight |
W |
|
H7 / LED (SA) |
| Starter |
kW |
|
0.9 |
|
|
|
|
|
| Power transmission – gearbox | |||
| Clutch |
|
|
Anti-hopping wet clutch |
| Gearbox |
|
|
Constant mesh 6-speed gearbox |
| Primary ratio |
|
|
1.65 |
| Transmission ratios I |
|
|
2.438 |
| II |
|
|
1.714 |
| III |
|
|
1.296 |
| IV |
|
|
1.059 |
| V |
|
|
0.943 |
| VI |
|
|
0.848 |
| Rear wheel drive |
|
|
cardan shaft |
| Transmission ratio |
|
|
2.91 |
|
|
|
|
|
| Chassis |
|
|
|
| Frame construction type |
|
|
Tubular steel bridge frame, engine self-supporting |
| Suspension, front |
|
|
BMW Telelever |
| Suspension, rear |
|
|
BMW EVO Paralever |
| Spring travel, front/rear |
mm |
|
190/200 |
| Wheel castor |
mm |
|
99.6 |
| Wheelbase |
mm |
|
1507 |
| Steering head angle |
° |
|
64.5 |
| Brakes |
front |
|
Hydraulically actuated twin disc brake, Ø 305 mm |
| rear | Single-disc brake Ø 276 mm | ||
|
|
BMW Motorrad Integral ABS (standard, part intergal, disengageable) |
|
|
BMW R 1200 GS | ||
| Wheels |
|
|
Light alloy cast wheel |
| front | 3.0 x 19” | ||
| rear | 4.5 x 17” | ||
| Tyres |
front |
|
120/70 R19 |
| rear | 170/60 R17 | ||
|
|
|
|
|
| Dimensions and weights |
|
|
|
| Total length |
mm |
|
2207 |
| Total width with mirrors |
mm |
|
953 |
| Seat height |
mm |
|
850/870 |
| DIN unladen weight, ready for road |
kg |
|
238 |
| Permitted total weight |
kg |
|
450 |
| Fuel tank capacity |
l |
|
20 |
|
|
|
|
|
| Performance figures |
|
|
|
| Fuel consumption |
|
|
|
| 90km/h |
l/100km |
|
4.1 |
| 120km/h |
l/100km |
|
5.5 |
| Acceleration |
|
|
|
| 0-100km/h |
s |
|
3.6 |
| Maximum speed |
km/h |
|
>200 |
