BMW M5 |
|
|
|
|
|||
| Body |
|
|
|
|
| No. of doors/seats |
4 / 5 |
|||
| Length/width/height (unladen) |
mm |
4910 / 1891 / 1456 |
||
| Wheelbase |
mm |
2964 |
||
| Track, front/rear |
mm |
1627 / 1582 |
||
| Ground clearance |
mm |
117 |
||
| Turning circle |
m |
12.6 |
||
| Tank capacity |
approx. l |
80 |
||
| Cooling system incl. heating |
l |
18.5 |
||
| Engine oil1) |
l |
8.4 |
||
| Weight, unladen, to DIN/EU |
kg |
1870 / 1945 |
||
| Max load to DIN |
kg |
540 |
||
| Max permissible weight |
kg |
2410 |
||
| Max axle load, front/rear |
kg |
1180 / 1260 |
||
| Max trailer load,braked (12%)/unbraked |
kg |
2000 / 750 | ||
| Max roof load/towbar download |
kg |
100 / 90 |
||
| Luggage comp capacity |
l |
520 |
||
| Air drag |
cX x A |
0.33 x 2.40 |
||
| Engine | ||||
| Configuration/No. of cyls./valves |
V90 / 8 / 4 |
|||
| Engine technology |
M TwinPower Turbo technology with cross-bank exhaust manifold, twin-scroll turbocharging, direct petrol injection (High Precision Injection), VALVETRONIC and Double-Vanos |
|||
| Effective capacity |
cm³ |
4395 |
||
| Bore/stroke |
mm |
88.3 / 89.0 |
||
| Compression ratio |
:1 |
10.0 |
||
| Fuel grade |
RON 98 (min. 95) |
|||
| Output |
kW/hp |
412 / 560 |
||
| at |
min–1 |
6000 – 7000 |
||
| Torque |
Nm |
680 |
||
| at |
min–1 |
1500 – 5750 |
||
| Electrical system | ||||
| Battery/Installation |
Ah/– |
105 / luggage comp |
||
| Alternator |
A/W |
210 / 2926 |
||
| Driving dynamics and safety | ||||
| Suspension, front |
Double track control arm with M-specific elastokinematics, small, negative steering roll radius, anti-dive |
|||
| Suspension, rear |
Integral-V multi-arm axle with M-specific elastokinematics, spatial suspension with anti-squat and anti-dive |
|||
| Brakes, front |
Six-piston fixed-calliper compound disc brakes |
|||
| Diameter |
mm |
400 x 36 / vented |
||
| Brakes, rear |
Single-piston fixed-calliper compound disc brakes |
|||
| Diameter |
mm |
396 x 24 / vented |
||
| Driving stability systems |
Standard: DSC incl. ABS, ASC and MDM (M Dynamic Mode), CBC (Cornering Brake Control), DBC (Dynamic Brake Control), Dry Braking function, Fading Compensation, Start-Off Assistant, Dynamic Damper Control, Active M Differential, linked to Integrated Chassis Management (ICM) |
|||
| Safety equipment |
Standard: airbags for driver and front passenger, side airbags for driver and front passenger, head airbags for front and rear seats, three-point inertia-reel seatbelts on all seats with belt latch tensioner and belt force limiter at the front, crash-activated head restraints at the front, crash sensors, Tyre Defect Indicator |
|||
| Steering |
Hydraulic rack-and-pinion steering with M-specific Servotronic function |
|||
| Steering ratio, overall |
:1 |
18.0 |
||
| Tyres, front/rear |
265/40 R19 102Y 295/35 R19 104Y |
|||
| Rims, front/rear |
9J x 19 LM 10J x 19 LM |
|
|
|
BMW M5 |
||
|
|
||||
| BMW ConnectedDrive |
|
|
|
|
| Comfort |
Optional: BMW Assist incl. Enquiry Service, remote-control functions and V-Info+ (Traffic Info plus), Real-Time Traffic Information, BMW TeleServices, integration of mobile devices |
|||
| Infotainment |
Optional: internet access, BMW Online incl. Park Info, National Info, Google Local Search, News, Realtime Weather, BMW Routes, Office functions, Bluetooth Audio Streaming, Online Update Music Tracks, Apps |
|||
| Safety |
Optional: variable light distribution and adaptive headlight range control (standard), High Beam Assistant, Park Distance Control, rear-view camera, Surround View incl. Top View and Side View, BMW Night Vision with pedestrian detection, Head-Up Display (standard), Lane Change Warning, Lane Departure Warning, Speed Limit Info, Advanced eCall |
|||
|
|
||||
| Transmission |
|
|||
| Type of gearbox |
Seven-speed M double-clutch transmission with Drivelogic |
|||
| Gear ratios I |
:1 |
4.806 |
||
| II |
:1 |
2.593 |
||
| III |
:1 |
1.701 |
||
| IV |
:1 |
1.277 |
||
| V |
:1 |
1.000 |
||
| VI |
:1 |
0.844 |
||
| VII |
:1 |
0.671 |
||
| R |
:1 |
4.172 |
||
| Final drive |
:1 |
3.150 |
||
|
|
||||
| Performance |
|
|
|
|
| Power-to-weight ratio(DIN-Leergew.) |
kg/kW |
4.5 |
||
| Output per litre |
kW/l |
93.7 |
||
| Acceleration 0–100 km/h |
s |
4.4 |
||
| 0–1000 m |
s |
21.9 |
||
| in 4th/5th gear 80–120km/h |
s |
3.7 / 4.6 |
||
| Top speed |
km/h |
250 / 3052) |
||
| BMW EfficientDynamics | ||||
| BMW EfficientDynamics standard features |
Brake Energy Regeneration with recuperation display, Auto Start-Stop function, intelligent lightweight construction, on-demand operation of ancillary units, flow rate-controlled power steering pump, tyres with reduced rolling resistance |
|||
| Fuel consumption EU | ||||
| with standard tyres | ||||
| Urban |
l/100km |
14.0 |
||
| Extra-urban |
l/100km |
7.6 |
||
| Combined |
l/100km |
9.9 |
||
| CO2 |
g/km |
232 |
||
| Emission rating |
EU5 |
Specifications apply to ACEA markets; data relevant to homologation applicable in part only to Germany (weight)
1) Oil change
2) In conjunction with optional M Driver’s Package
BMW M5 Output and torque diagram

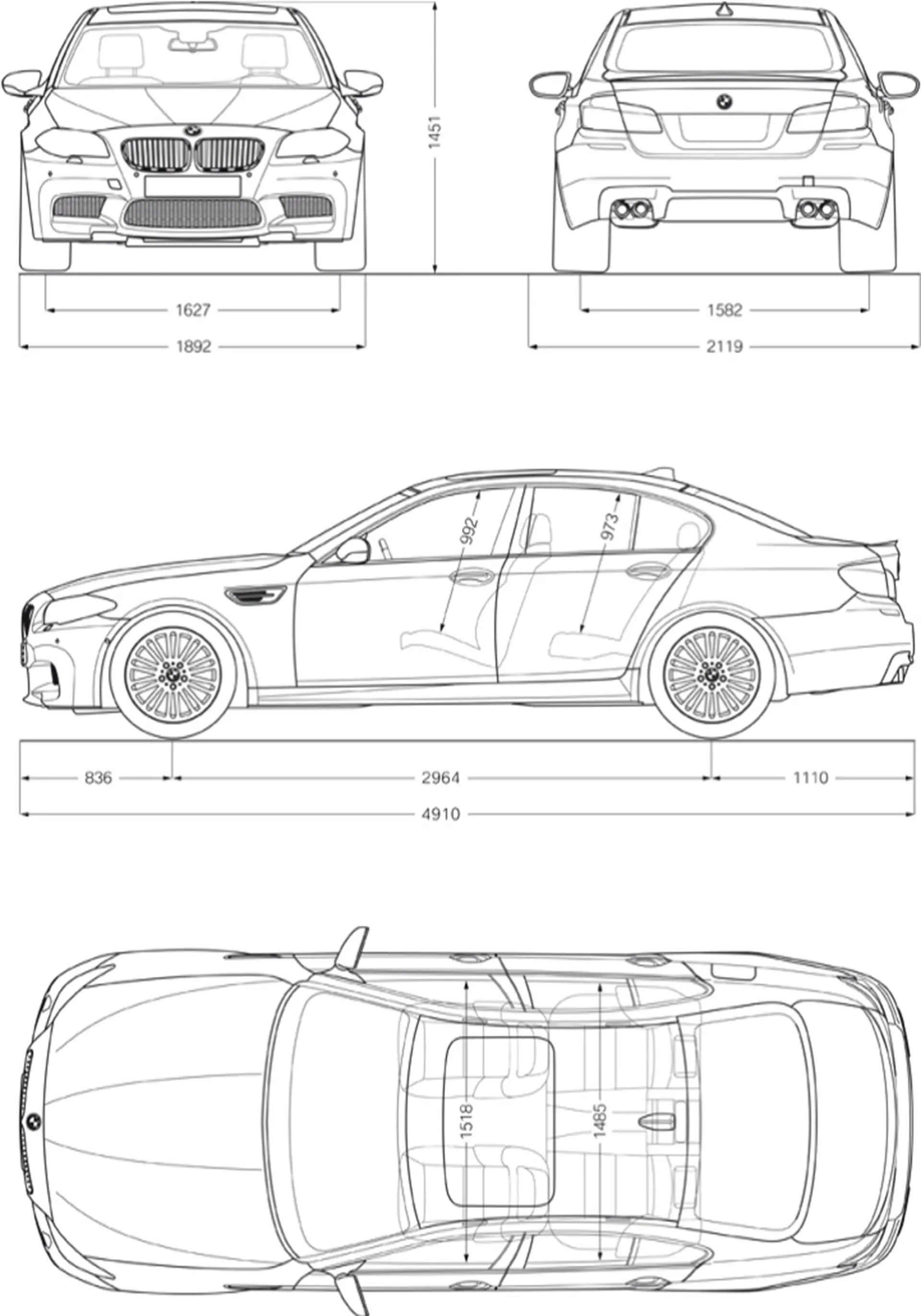

BMW M5 Exterior and interior Dimensions
