Super ACE
Super ACE is the latest 1 ton mini-truck from Tata Motors and supplements its existing bakkie range in South Africa offering “more value for money” to its customers.

Super Ace

Strong, Spacious and Superb – the Tata Super ACE is a combination of new age design and cutting edge technology. In a world obsessed with frivolous excesses, Super Ace comes with a promise – a promise to deliver exactly what your business needs.

A TATA 4 cylinder, turbocharged & intercooled (475 IDI) engine that is coupled to a 5-speed fully synchromesh gearbox is used to power & propel the Super Ace. It delivers a peak power of 52 kW (70 HP) and a peak torque of 135 NM. Its performance is accentuated by the best in class fuel consumption.

Maximum gradeability of 39% allows the Super Ace to climb steep slopes & negotiate difficult terrains. Super Ace has been designed to navigate narrow & busy roads too with ease. The 4.34 m length & 1.56 m width coupled with a turning radius of 5.1 m allows a higher degree of maneuverability.

Tata Super Ace

With a full 1 ton loading capacity and the longest loading deck in its class, it gives you the required tool to keep pace with your growing business & delivery needs. Its strong & sturdy chassis is made from high quality steel for maximum durability.

The cargo body area (2630×1460 mm) of Super Ace is amongst the largest in the 1 T payload category enabling it to carry voluminous cargo with ease. The three side drop-side load body and optimum loading height ensures ease of loading & unloading. Super Ace offers maximum flexibility making it a perfect option for various usages & applications.

The contemporary & distinctive exterior styling and the all steel shell makes an artful combination of style & strength. Front independent suspension ensures a very comfortable ride for the driver and the passenger. The signature Tata grill & the elegant composite head lamps increase the aesthetics of the vehicle.

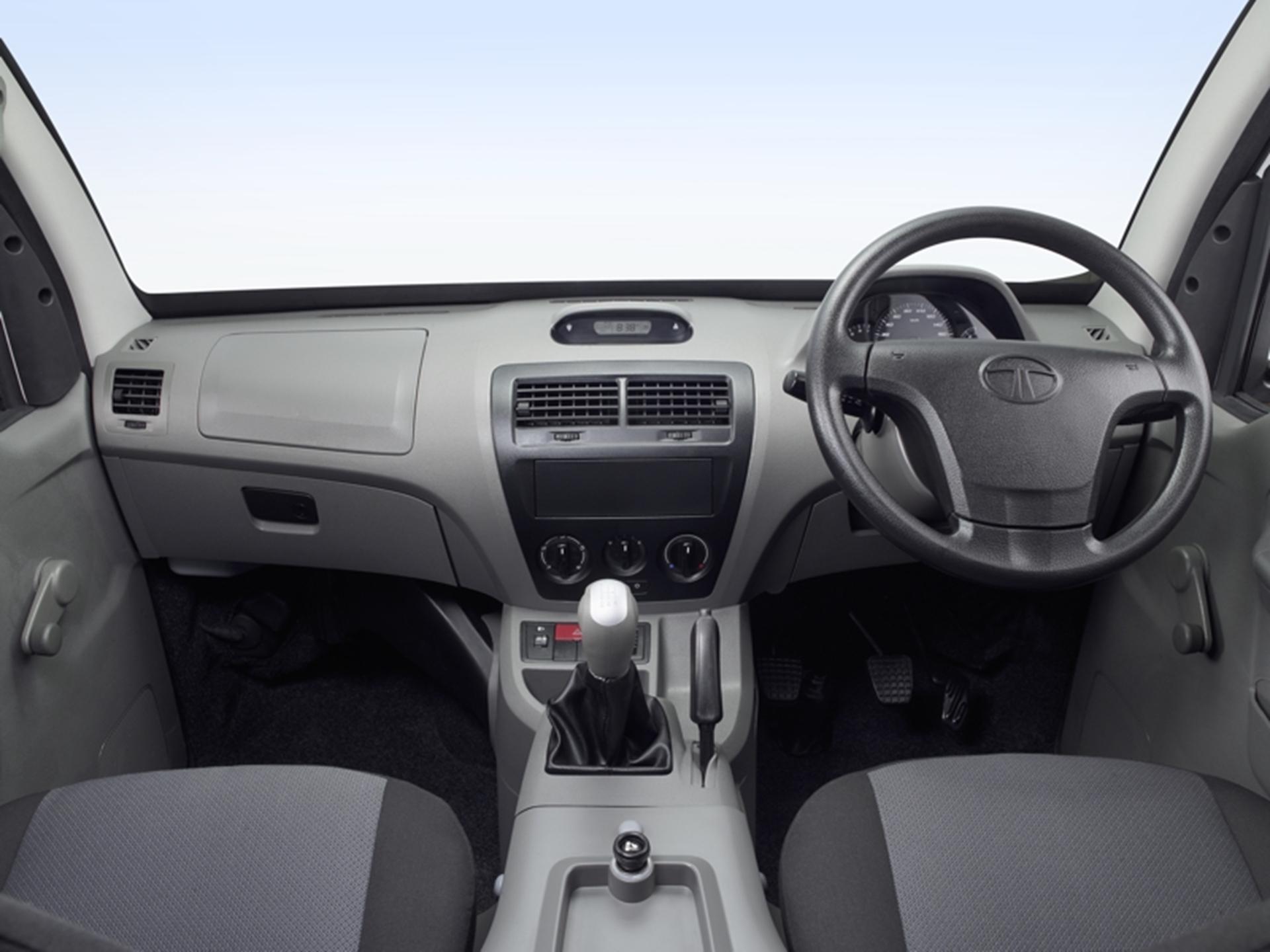

Tata Super Ace Inside

The interiors have been designed keeping passengers’ comfort and convenience in mind. It is designed in such a way as to offer better driving comfort, convenience and visibility. Taking the “User Friendly” theme into Super Ace’s cabin, you will find features like laminated windscreen, tinted glasses, power windows, power steering, external power socket & interior trims with two tone fabric.

The newly designed “soft touch” dashboard in addition to housing the instrument cluster also has a lockable glove box & a sophisticated Heating, Ventilation & Air conditioning (HVAC)* system to further enhance the levels of comfort.

With its superior exterior styling, versatility, large loading area, comfortable ride and handling, best in class fuel efficiency, Super Ace is the vehicle that that is powered to take your business to the next level.

Model	Super Ace
Engine
Model	TATA 475 IDI TCIC EURO II 4 Stroke, Water cooled, Indirect
Type	Injection, Turbo charged intercooled Diesel engine
Displacement	1405 cc
Maximum Power	52 kW (70 hp) @ 4500 rpm
Maximum Torque	135 Nm @ 2500 rpm

Clutch	Single Plate dry friction diaphragm type
Gearbox	GBS 65-5/5.07
Type	Synchromesh on all 5 forward gears; Sliding mesh for reverse gear
Brakes
Type	Dual circuit vacuum assisted hydraulically actuated
Front	Disc Brake
Rear	Drum Brake
Parking Brake	Cable operated mechanical linkages acting on rear brakes

Suspension	Front : Independent, strut type
Type	Rear : Semi Elliptic leaf spring
Shock Absorber	Hydraulic double-acting telescopic type

Wheels & Tyres
Tyres	175 R14 LT 8PR Radial

Dimensions	(in mm)
Overall Length	4340
Overall Width	1565
Overall Height	1864
Ground Clearance	160
Wheel Base	2380
Track Front	1340
Track Rear	1320
Load deck Length	2630
Load deck Width	1460
Height of side panels	300
Loading Height from ground	597
Minimum turning Circle Diameter	10.2 m

Fuel Tank (l)	38

PERFORMANCE	125 kmph
Gradability	39%

Weight
Max GVW (kg)	2240
Kerb Weight (kg)	1240
Payload	1000
Seating Capacity	Driver + 1

Features	DLS	DLE
Load Guard	Yes	Yes
Rear Tow bar provision	Yes	Yes
Ventilation system	Heater Demister	HVAC
Body colored bumper & ORVM	No	Yes
Power Windows	No	Yes
Central Locking & Immobilizer	Yes	Yes

Salient features:

Genuine 1T bakkie with a Turbocharged Diesel engine
Best in class fuel efficiency
Longest loading deck in its class – 2.63 m
Stylish yet practical
